Vertical Lift Traction Circular Parking System 10 Levels for full SUVs



Work Principle

The shape of the parking system is cylinder or multi prism. The structure can be divided into inner cylinder and outer cylinder. The inner cylinder is the lifting channel which consists of lifter, turntable, layer levelness system and carrier. The outer cylinder is the parking area which is under radiate arrangement. 6-12 car spaces can be set at each floor.

This circular lift full automatic smart parking system can be full underground design, also can be full on the ground design.


Areas needed

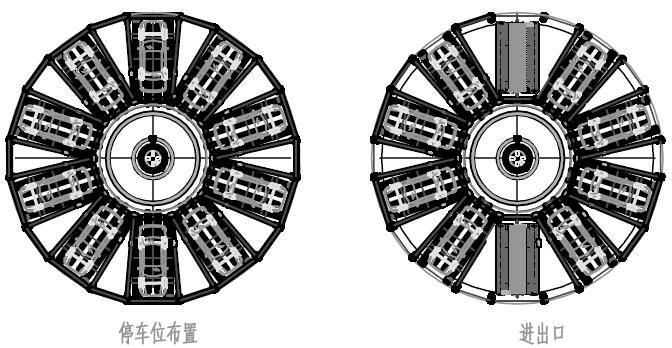

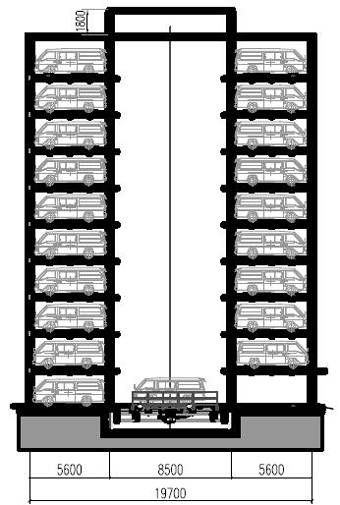

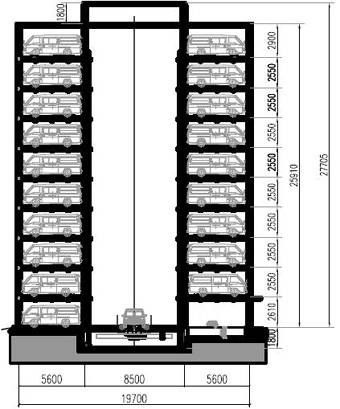

Standard design is 8 cars per level. It can be 6, 8, 10 and 12 cars.

     6 cars circular parking covers area 261 sqm.

     8 cars circular parking covers area 278 sqm.

     10 cars circular parking covers area 314 sqm.

     12 cars circular parking covers area 380 sqm.





Number of Entrances / Exit and position as buyer required based on parking site situation.

Characteristics

1) Scope of application: Outdoor multi-level parking system and indoor concrete type well type parking system.

2) Drive mode: Traction drive.

3) Car exchanging: comb type carrier or tire gripping carrier.

4) Layouts: ground layout, half ground half under underground layout and underground layout.

5) Entrance observation mirror, voice prompts, LED display are equipped.

Safety Protection

System protection: short circuit protection, voltage loss protection, leakage protection, emergency stop, grounding protection
Entrance and exit protection: Over length detection, Over height detection, Human and vehicles mistake entrance detection, operation error, etc
Equipment protection: abnormal movement limit switch, timeout, under time, limit switch error, rope loosening protection, lifting stall, abnormal communication, etc

Safety Devices more

Parts List of the Circular System


Technical Parameters

Item Parameters

Model

PCS-Circular-Traction Drive

Mode of drive

Motor + Traction + Steel rope

Size of car (L*W*H)

5300mm*1900mm*2050mm

Weight of car

2350kg max

Mode of operation

Auto / Manual (Monitor control)

Entrances/Exits

2

Total spaces

98

Mode of operation

IC card / Keyboard / Manual

Carrier type

Fixed comb exchange carrier

Carrier speed

45m/min

Carrier slide motor

0.75kw*2

Turning Cart Motor

1.5KW

Turning Cart Speed

3r/min

Lifter

Mode of drive

Motor gears + Traction + Steel Rope

lift motor

50KW

Lift speed

50m/min

Electricity

for power

AC380V,50Hz, 3 phases 5 wires system

Mode of parking

Forward in, Forward out

Mode of operation

IC Card / Touch screen / Mobile APP
