Car Turntable


Work Principle

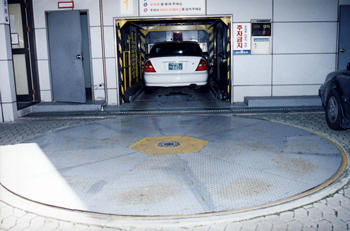

Turn table is designed as a supporting tool for parking system, especially narrow site space to help turning the directions of the car. It is used at the entrance and exit  to solve the inconvenient  turning problem. It is also used for car show for sales inside the room. There are many options of different materials of turning platform. Thread steel plate, hot galvanized steel plate, aluminum alloy plate, glass plate. Mostly, we suggest aluminum alloy plate for outside use. Or just steel plate to save more cost.

Following is aluminum alloy plate for reference.




Technical Parameters

Item Parameters

Name

Car Turntable

Model

Turntable

 Size of car (L*W*H)

5300mm*1900mm*1550mm

5300mm*1900mm*2050mm

 Weight of car

 2350kg

 motor

0.75kw

 Power control box

 400*500*200

 Remote controller

Optional

 Gear box seat

400*440*12

 Standing wheel device

 150*240

Pin shaft plate (tooth ring)

 round

Structure frame (fan-shaped)

Square pipes 60*40*3, 40*40*3

Gear wheel

yes

Standing wheel dragging bar

yes

Standard parts

yes

Paint, packing materials

yes

Platform (table)

Steel plant or Thread aluminum alloy plate
